High speed metal pipe laser

Name: X15 laser pipe cutting machine
Uploaded: 2022-12-23T22:03:35+08:00
Description: X15 laser pipe cutting machine

$50154-58154 /Set/Sets

Payment Type:	T/T
Incoterm:	FOB
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	Foshan,Guangzhou,Shenzhen

Power (Watts):

1000w
1500w
3000w
2000w

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: CTK-X15

Brand: Chittak

Application: Laser Cutting

Applied Material: Metal

Old And New: New

Laser Type: Fiber Laser

Cutting Area: Other

Support Graphic Format: Ai, Plt, Dxf, Bmp, Dst, Dwg, Dxp, Las

Whether CNC: Yes

Cooling Method: Water Cooling

Place Of Origin: China

Certification: Ce, Iso

Industrial Laser Brand: Bwt

Servo Motor Brand: Inovance

Linear Guide Brand: Hiwin

Core Selling Point: Automatic

Warranty Period: 1 Year

Out-of-warranty Service: Online Support, Video Technical Support

Applicable Industry: Hotels, Restaurant, Garment Shops, Manufacturing Plant, Building Material Shops, Home Use, Retail, Printing Shops, Machinery Repair Shops, Construction Works, Other, Advertising Company

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Mechanical Test Report: Not Available

Video Factory Inspection: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 2 Years

Core Components: Pressure Vessel, Motor, Bearing, Gear, Gearbox

Control System: Chittak

Cutting Head: Ospri

Fiber Laser Generator: 1000-3000W

Precision Reducer: MOTOVARIO

Intelligent Air System: SMC/AIRTAC

Standard Electrical Element: Schneider

Automatic Oil Filling System: Chittak

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.)
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

X15 laser pipe cutting machine

Quickly cut off the round pipe, the cutting point



Product Description

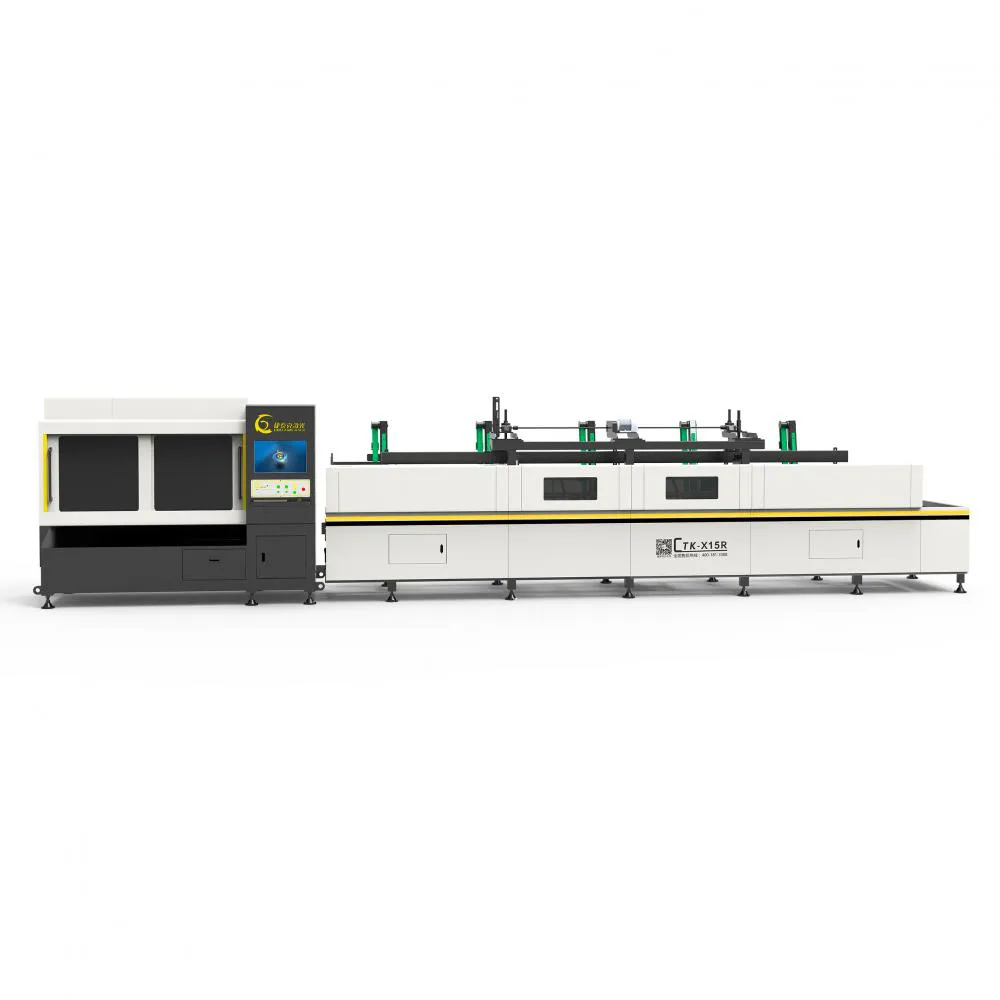

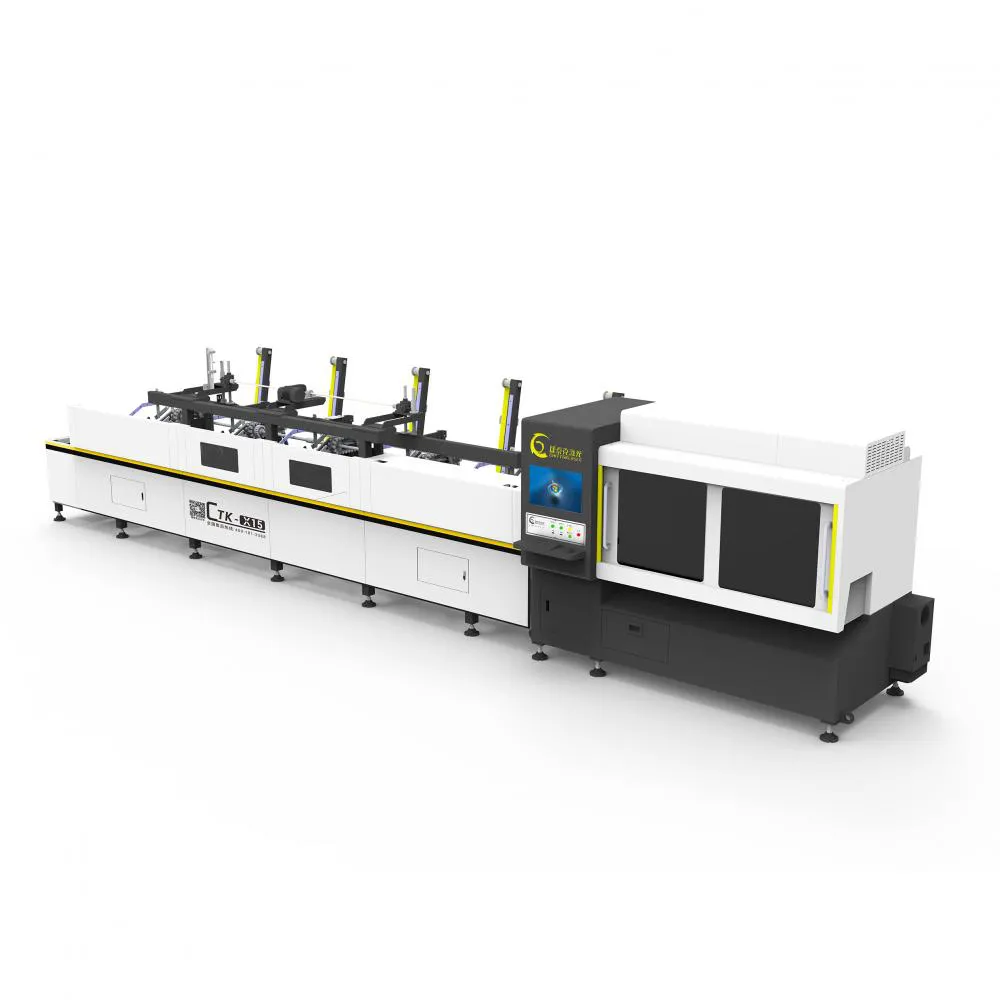

Automatic high speed pipe cutting machine CTK-X15

This Laser Metal Cutting Machine is equipped with BWT fiber laser generator, Ospri laser head, Chittak intelligent pipe cutting system and water-cooling system.

There are some features about Chittak self-developped intelligent pipe cutting machine:

With a professional pipe software development team, the software has been tested and verified for a long time, which is mature and easy to learn and operate.
For laser cutting industry professional algorithm, more stable, more reasonable operation, more efficient.

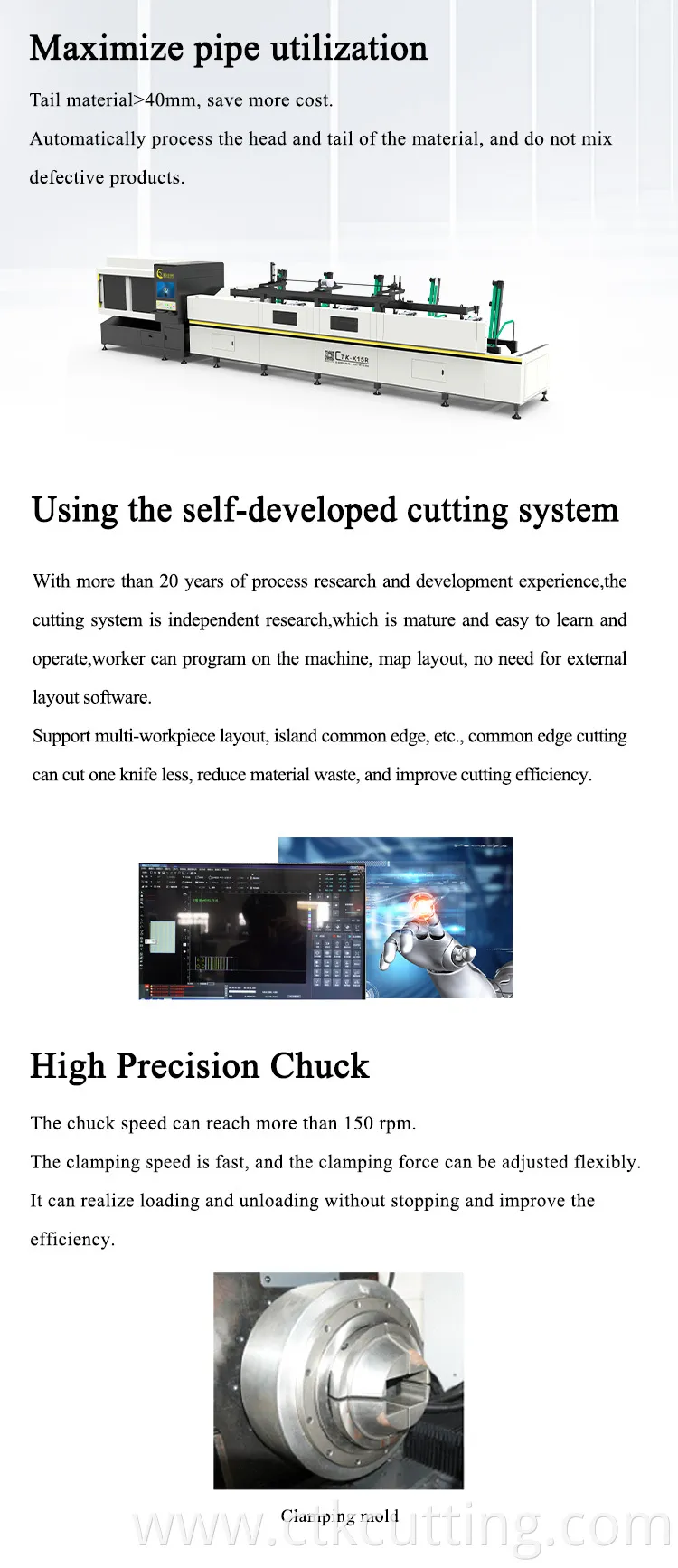

Strong programming ability, programming on the machine, map layout, no need for external layout software. Can support import IGS direct processing, also can draw on the software cutting.
Support multi-workpiece layout, island common edge, etc., common edge cutting can cut one knife less, reduce material waste, and improve cutting efficiency.
The head and tail material can be cut off or not, and the tail material can be calculated automatically; With direct feed, clip feed function.
The same software embedded CNC, CAM, height regulator module, remote help customers update optimization, and fault diagnosis.

Machine diameter:

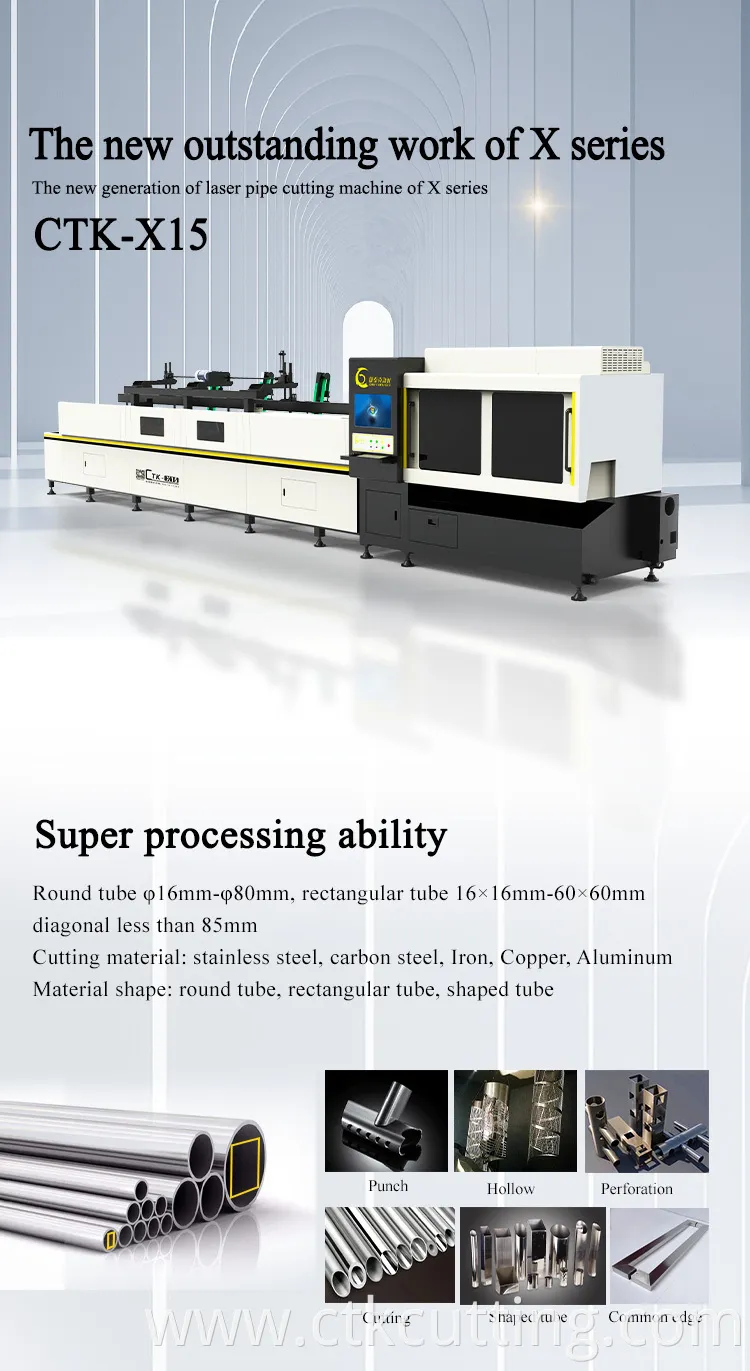

Tube cutting working area:Automatic feeding：round tubeφ16mm-φ80mm，rectangular tube 16×16mm-60×60mm（diagonal less than 85mm）
Cutting material:Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, etc
Tailing length:＞40mm
Maximum single tube weight:25kg (example: round pipe φ60x2x6000mm)
Size(LxW):About 9100x2500mm
