$55539-61693 /Set/Sets
| Payment Type: | T/T |
| Incoterm: | FOB,EXW |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Foshan,Shenzhen,Guangzhou |
Model No.: CTK-C12-LN
Brand: Chittak
Application: Laser Cutting
Applied Material: Metal
Old And New: New
Laser Type: Fiber Laser
Cutting Area: Other
Support Graphic Format: Ai, Plt, Dxf, Bmp, Dst, Dwg, Dxp, Las
Whether CNC: Yes
Cooling Method: Water Cooling
Place Of Origin: China
Certification: Iso, Ce
Industrial Laser Brand: Bwt
Servo Motor Brand: Inovance
Laser Machine Control System Brand: Cypcut
Core Selling Point: Automatic
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Online Support
Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Garment Shops, Building Material Shops, Home Use, Other, Advertising Company, Retail, Food Shop, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Factory
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Mechanical Test Report: Not Available
Video Factory Inspection: Not Available
Marketing Type: New Product 2020
Core Component Warranty Period: 2 Years
Core Components: Motor, Gear, Gearbox, Bearing
Origin: China
Laser Head: Ospri
Electrical Control System: Schneider
Laser Power: 1500W / 2000W / 3000W
Machine Bed And Accessories: Chittak
Brand: Chittak
Work Mode: Fiber continuous
Front And Rear Pneumatic Chuck: Chittak
Reducer: Shimpo
Rack And Pinion: Taiwan
| Selling Units | : | Set/Sets |
| Package Type | : | Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.) |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Laser cutting machine CTK-C12-LN

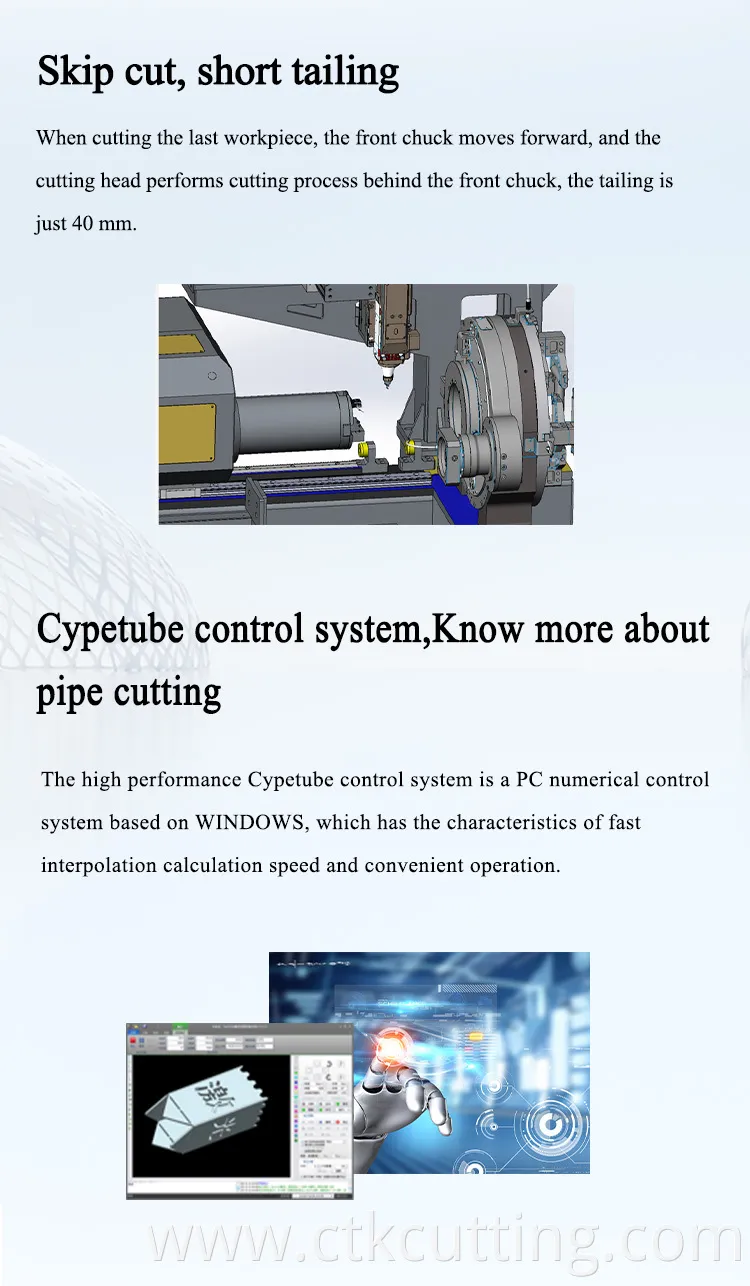

1. Material saving: 40mm ultra-short tail material, breaking industry records and increasing material utilization
2. This Laser Pipe Cutting Machine has high range compatibility: Ф10~120mm pipe diameter, compatible with round pipe, square pipe, oval pipe, special-shaped pipe, etc., with obvious advantages for thin-walled pipes.
3. Laser cutter has the high-precision chuck: one-time clamping, no need to replace the jaws, long-term accuracy.

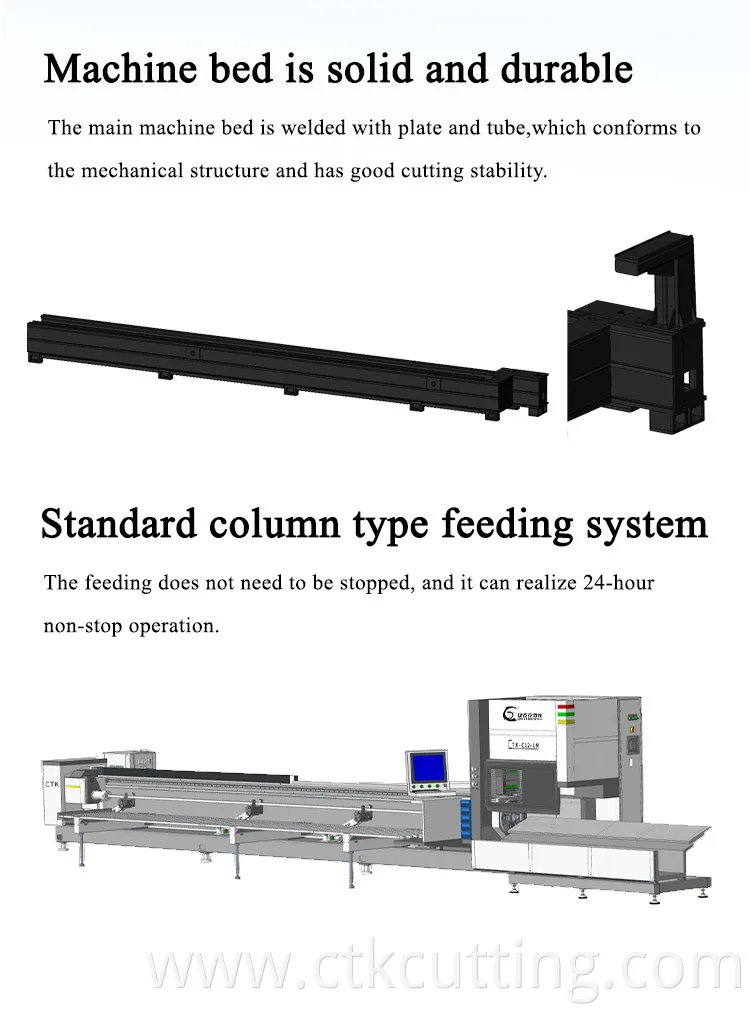

4.Automatic feeding of the metal pipe cutter: The structure of the side-mounted machine tool is equipped with a semi-automatic feeding machine as standard. The feeding does not need to be stopped, and it can realize 24-hour non-stop operation.
5.The machine diameter:

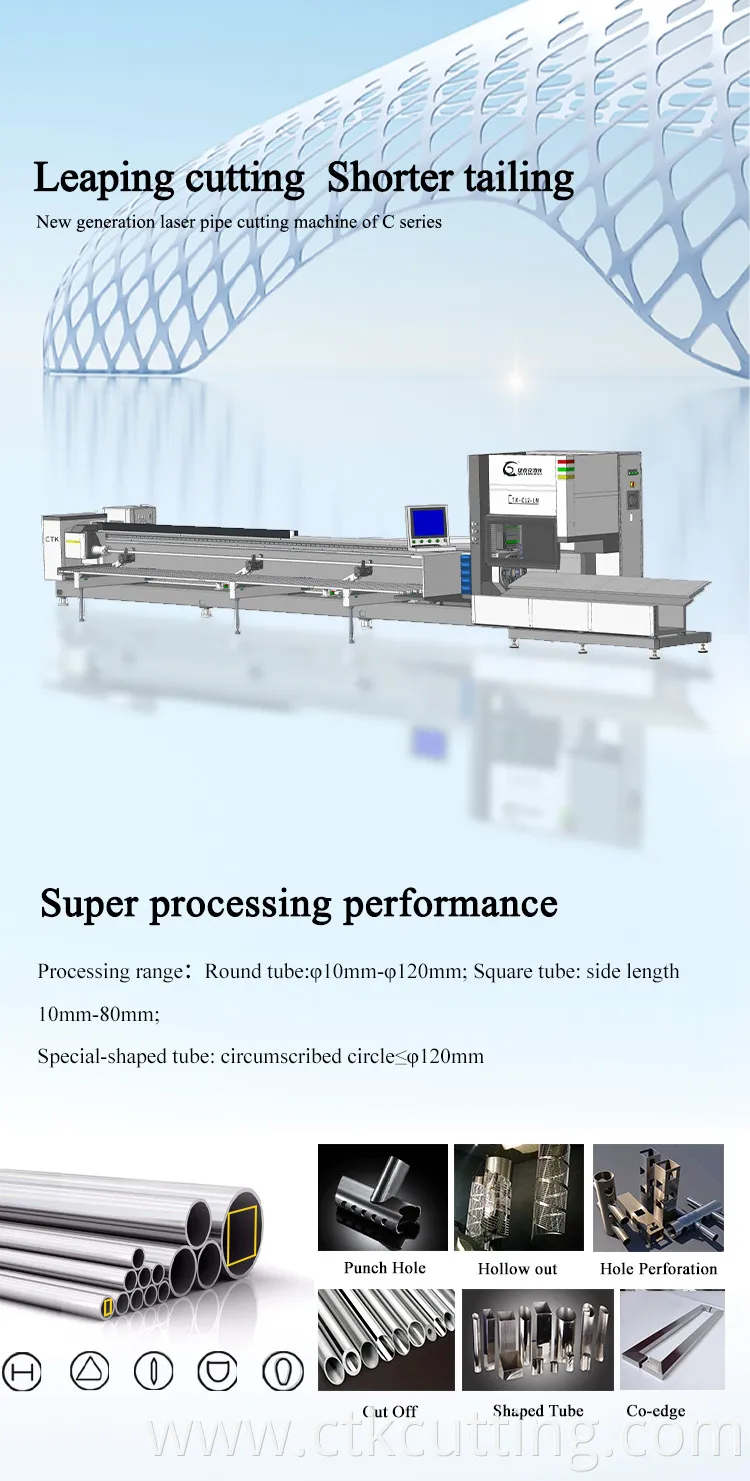

Pipe processing range Round tube: φ10mm-φ120mm; Square tube: side length 10mm-80mm; Special-shaped tube: circumscribed circle≤φ120mm
Manual feeding（mm:7000
Automatic feeding length（mm):5800~6500（Non-standard 5000~7000）
Cycle feeding :First feeding≤50，Subsequent feeding≤17
Loader carrying（kg): 300
The maximum load-bearing capacity of a single pipe for manual feeding（kg): 40
The maximum load-bearing capacity of a single pipe with automatic feeding（kg）:40
6.Chittak has many other pipe processing products:Automatic 3D Laser Pipe Cutting Machine, Handheld Laser Welding Machine, Saw Blade Pipe Cutting Machine, Pipe Bending Machine, Pipe Chamfering Machine,Metal Plate Cutting Machine and Accessories like Saw Blade etc.. Welcome your enquiry and hope build the business relationship with you !
