$23077-31231 /Set/Sets
| Payment Type: | T/T |
| Incoterm: | FOB |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Shenzhen,Foshan,Guangzhou |
Model No.: CTK-X2
Brand: Chittak
Application: Laser Cutting
Applied Material: Metal
Old And New: New
Laser Type: Fiber Laser
Cutting Area: Other
Support Graphic Format: Ai, Dxf, Plt, Bmp, Dst, Dwg, Las, Dxp
Whether CNC: Yes
Cooling Method: Water Cooling
Place Of Origin: China
Certification: Ce, Iso
Industrial Laser Brand: Bwt
Servo Motor Brand: Delta
Linear Guide Brand: Hiwin
Core Selling Point: Easy To Operate
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Online Support
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Food Shop, Retail, Restaurant, Home Use, Construction Works, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Mechanical Test Report: Not Available
Video Factory Inspection: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 2 Years
Core Components: Motor, Bearing, Gear, Gearbox
Cutting Head: Ospri
Control System: Chittak Intelligent Pipe Cutting System
Cutting Speed: 12m/min（Depending on the material and thickness）
Cutting Gap: 0.1-0.2mm
Tail Length: ≥40mm
Voltage/Power: 380V/50HZ / 3.3KW(excluding laser generator and chiller)
Precision Reducer: Wanxin
Laser Cutting Process Database: Chittak
Tube Welding Machine: Chittak
Precision Guide: Taiwan
| Selling Units | : | Set/Sets |
| Package Type | : | Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.) |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

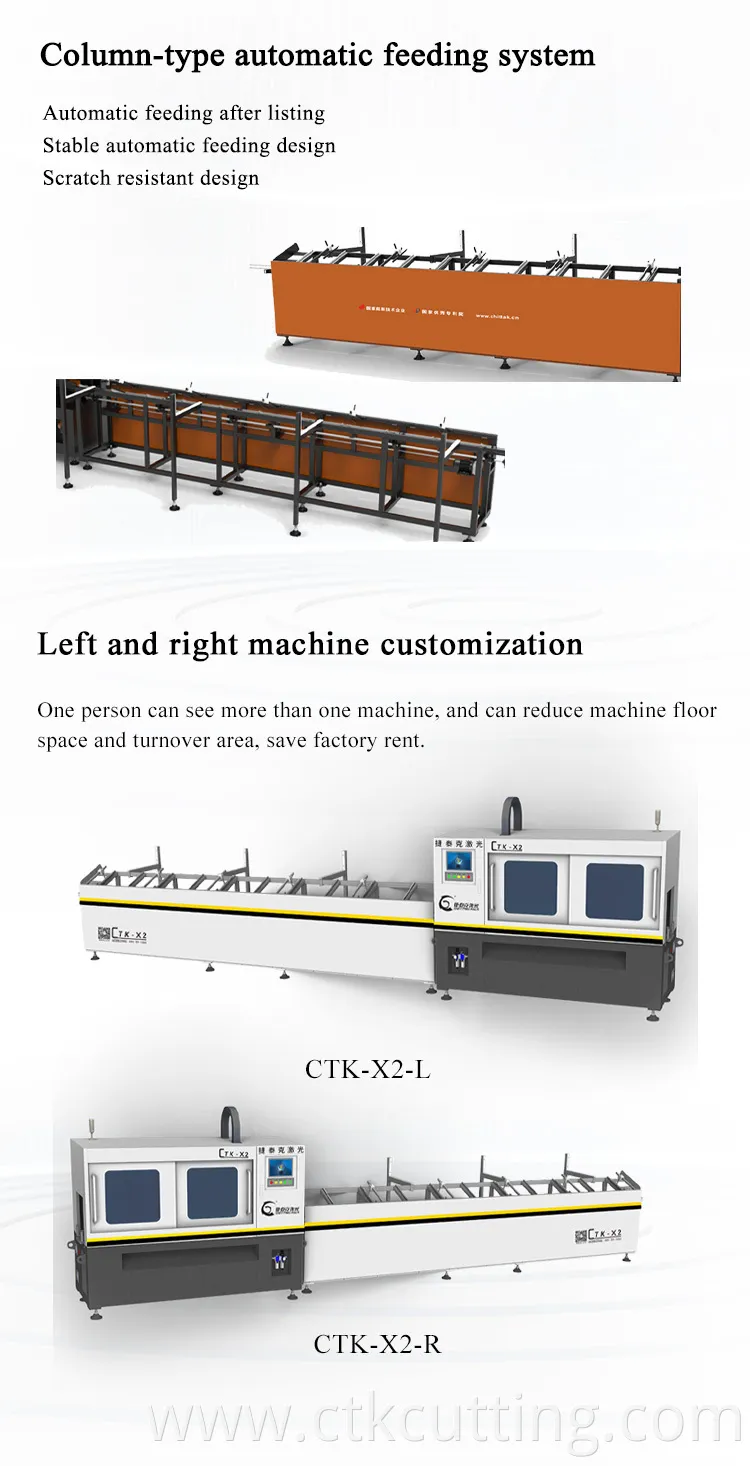

This Laser Pipe Cutting Machine is professional in processing the small pipe. The pipe processing diameter is 10mm-65mm, the processing length is 15-1000mm, it can be applicable to different types of material such as stainless steel, carbon steel, aluminum and copper etc. In additions, it is standard with the column-type feeding system which makes sure the feeding stable and high effiency.
Machine diameter:
Chittak has many other pipe processing products:Automatic 3D Laser Pipe Cutting Machine, Handheld Laser Welding Machine, Saw Blade Pipe Cutting Machine, Pipe Bending Machine, Pipe Chamfering Machine,Metal Plate Cutting Machine and Accessories like Saw Blade etc.. Welcome your enquiry and hope build the business relationship with you !
