1000w Handheld laser welder

$6770- /Set/Sets

Payment Type:	T/T
Incoterm:	FOB
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	Shenzhen,Foshan,Guangzhou

Power (Watts):

1000w

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: CTK-HJ1000

Brand: Chittak

Status: New

Place Of Origin: China

Certification: Ce, Iso

Warranty Period: 1 Year

Industrial Laser Brand: Bwt

Core Selling Point: Easy To Operate

Applicable Industry: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Home Use, Machinery Repair Shops, Construction Works, Restaurant

Out-of-warranty Service: Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Mechanical Test Report: Not Available

Video Factory Inspection: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 2 Years

Core Components: Other

Intelligent Wire Feeder Model: SS-SS-NEWSmart

Power Cord Length: Standard 3M

Wire Feeding Method: Automatic / Manual

Automatic Wire Feeding Speed Range: 0~9mm

Wire Feeding Size Type: Stainless steel wire,iron wire,aluminum wire

Wire Feeding Size Range: 0.8~1.6mm

Wire Feeding Delay: 0ms

Pumping Back Time: 0-3ms

Laser Wavelength: 1064-1080 NM

Spot Adjustment: 0.2-5mm

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.)
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Laser welding machine



Product Description

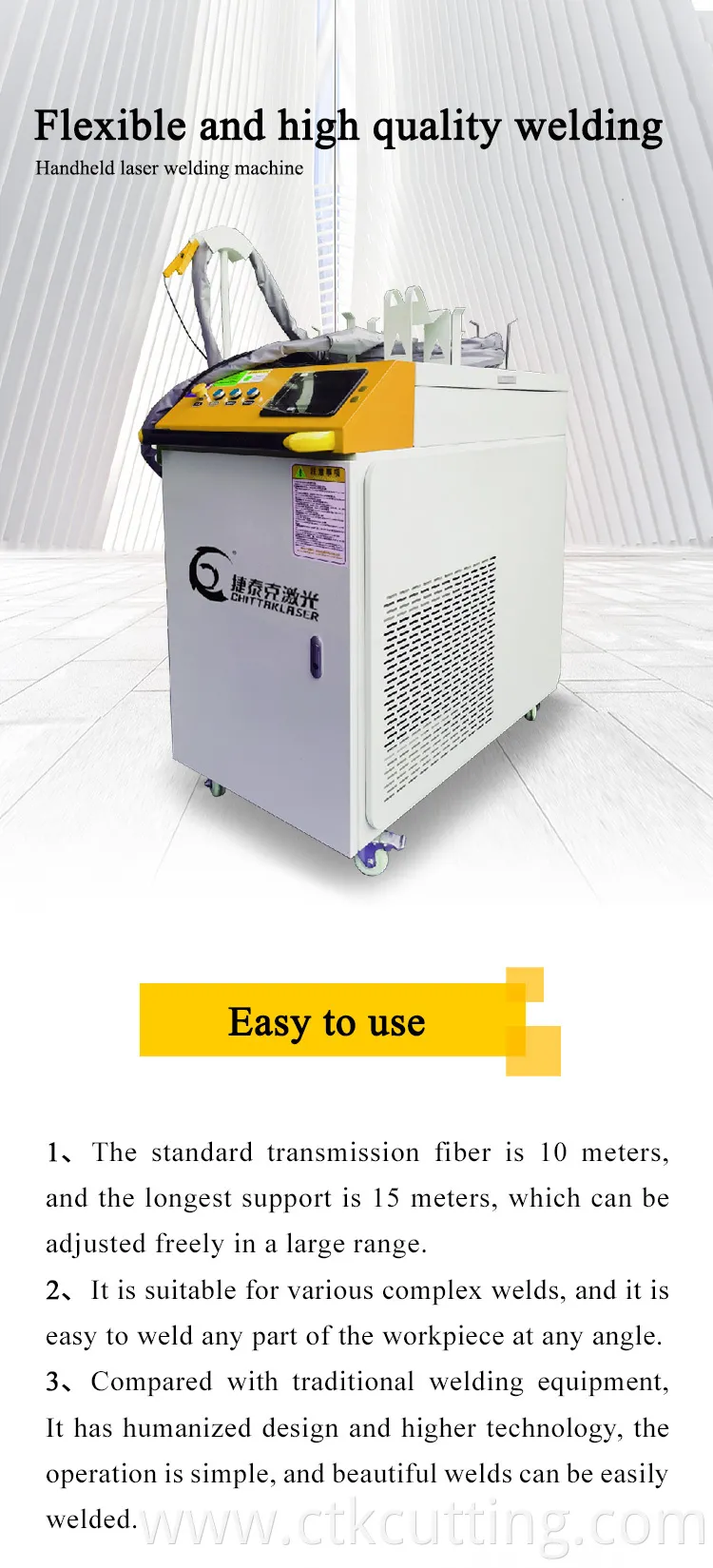

Handheld laser welding machine:

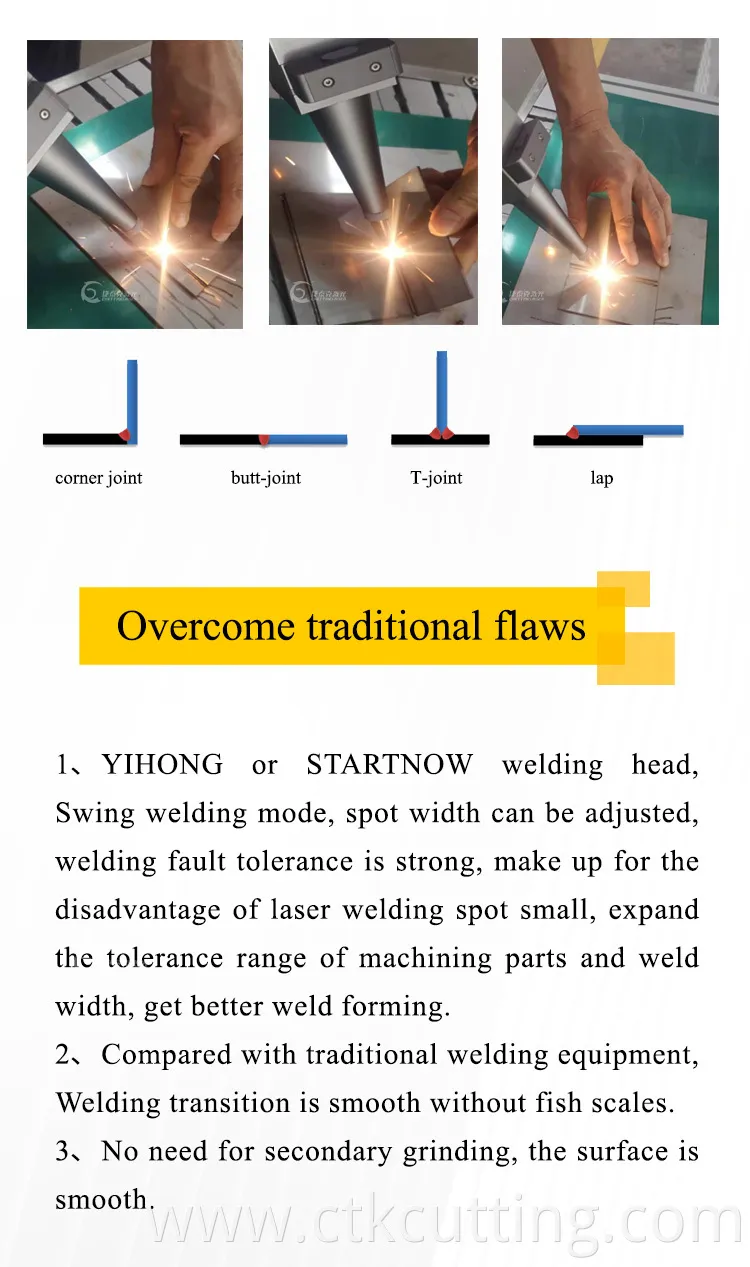

Handheld laser welder has the better weld formation:YIHONG or STARTNOW welding head，Swing welding mode, spot width can be adjusted, welding fault tolerance is strong, make up for the disadvantage of laser welding spot small, expand the tolerance range of machining parts and weld width, get better weld forming.
Laser welding machine is easy to learn and easy to operate:The operation is simple, and the welding methods of different forms of joints can be realized.

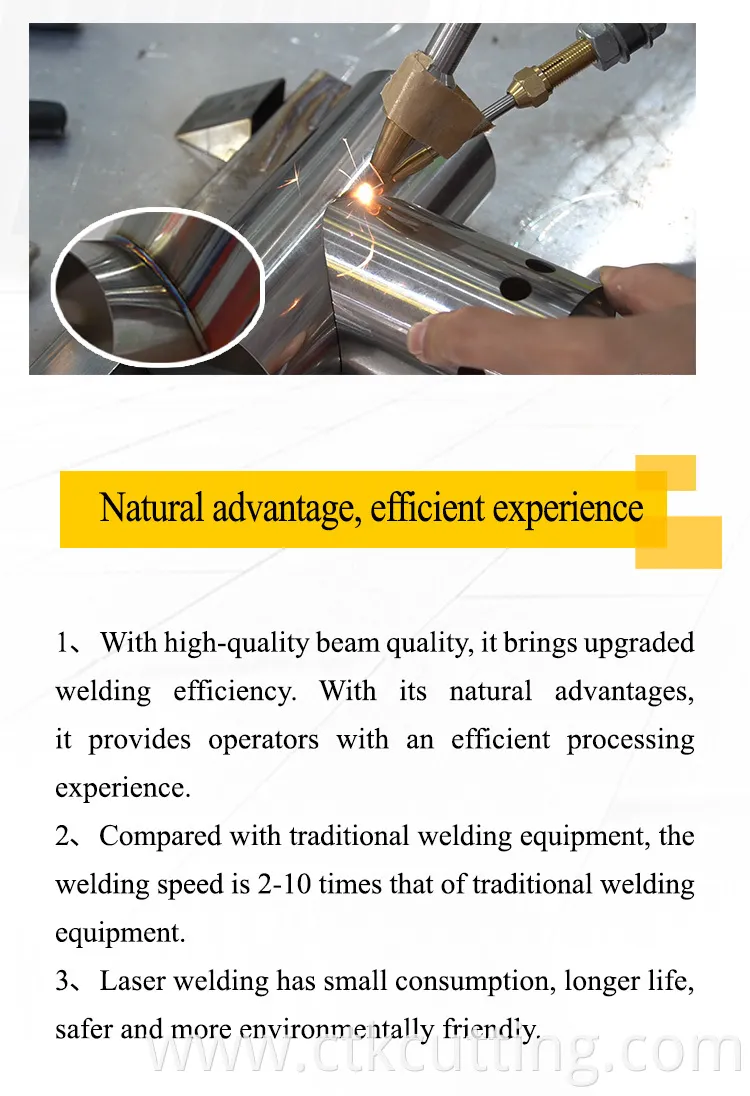

This metal welding machine has fast welding speed:The welding speed is fast, 2-10 times faster than traditional welding, and one machine can save at least 2 welders a year. Laser welding has less consumables, longer life, safer and more environmentally friendly.
Machine diameter:

Laser power:1000w
Laser wavelength:1070 NM
Fiber length :Standard10M
Work mode: Continuous / Modulation
Welding speed range :0~120 mm/s
Cooling machine :Industrial constant temperature water tank
Working ambient temperature range :15~35 ℃
Working environment humidity range :< 70%no condensation
Welding thickness recommendation : 0.5-2mm
Welding gap requirements: ≤0.5mm
Operating Voltage :220 V
