$15000-16000 /Set/Sets
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,CIF |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Guangzhou,Shenzhen,Foshan |
Model No.: CTK-450CNC-1500-TY
Brand: Chittak
Status: New
Machinable Material: Stainless Steel, Carbon Steel, Brass / Copper, Aluminium Alloy, Aluminum, Alloy
Video Factory Inspection: Not Available
Mechanical Test Report: Not Available
Marketing Type: Hot Product 2019
Core Component Warranty Period: 2 Years
Core Components: Motor, Gear
Degree Of Automation: Automatic
Place Of Origin: China
Core Selling Point: Automatic
Applicable Industry: Hotels, Farms, Advertising Company, Other, Home Use, Restaurant, Garment Shops, Food &Amp; Beverage Shops, Building Material Shops, Retail, Machinery Repair Shops, Food Shop, Printing Shops, Manufacturing Plant, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining
Warranty Period: 1 Year
Out-of-warranty Service: Online Support, Video Technical Support, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Brand: Chittak
Origin: China
Head Swivel: 90°
Driven Model: Automatic
Oil Tank Capacity: 90L
Tail End Material Length: 10-20mm
Servo Motor: Delta
Oil Pressure Regulating Valve: Yuken
Hydraulic Workstation: Chittak
PLC: MITSUBISHI
| Selling Units | : | Set/Sets |
| Package Type | : | Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.) |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

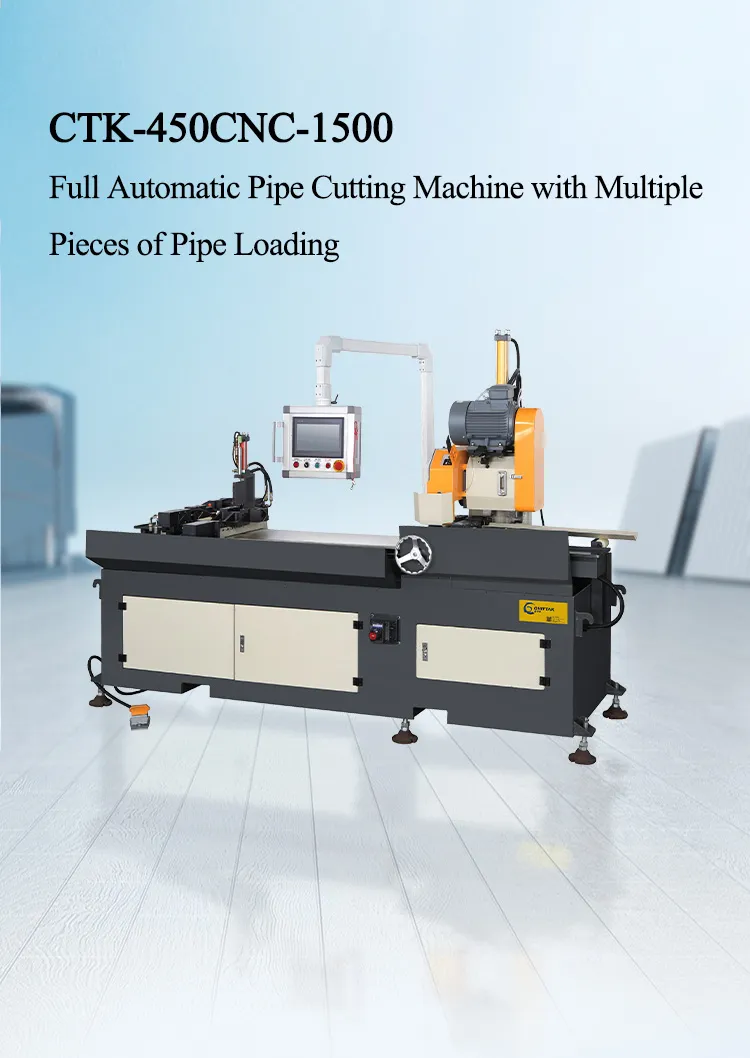

CTK-450CNC-1500
Cutting capacity(single mild steel pipe) ○Round tube(mm) Max 80*80 / 100*100 Rectangular steel (mm) Max 100*80
Model：
CTK-450CNC-1500
110 □Square tube (mm) Max Head Swivel 90°
○Round tube(mm) Max: 110mm
□Square tube (mm) Max: 80*80-100*100mm
Rectangular steel (mm) Max: 100*80mm
Tail material length(mm): no less than 60mm
Max.width between clamps (mm): 120mm
Material head length(mm):10-20 mm
Min tail end material cutting length(mm): 20-30 mm
Feeding length ( Multiple feeding is available): 20-1500mm
Saw Blade size Diameter (mm): HSS/TCTφ250-Φ400
Pin holes (mm): φ32/4- φ11×PCD63 φ50/4-φ15PCD80
Hydraulic system Hydraulic drive pressure: 25-35Kg/cm2
Fuel tank capacity: 90L
Net weight(KG): 1800
Dimension(LxWxH)(mm): 3450*1050*1900
1. Servo motor-driven feeding system: AC servo motor/C5 ball screw and linear guide are adopted, which are fast, stable and accurate. The maximum feed speed of the saw Blade Cutting Machine is 1500mm/s.
2. Chittak's unique patent: large pipe clamp device, which reduces the vibration of the pipe during operation, prolongs the life of the saw blade, and ensures the feeding speed. Patent number: ZL 2009 1 0039079.8
3. The minimum tail length of saw blade cutting is 20-30mm.
4. The control system is developed by Chittak, the database is rich and can be updated. easy to use.
5. Equipped with automatic detection and alarm information system, which is convenient for users to troubleshoot.
6. Five different cutting lengths can be set for a single material to reduce the waste of excess material.
7. The saw pipe cutting machine can update the automatic feeding system, which greatly improves the efficiency and saves labor costs. At the same time, it can be equipped with a conveyor belt to transport the finished product to the next process. All updated functions can be controlled by the cutting machine system.
8. This metal pipe cutting machine can cut multiple pipes at the same time.
