$1700-1900 /Set/Sets
| Payment Type: | T/T |
| Incoterm: | EXW |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Guangzhou,Shenzhen,Foshan |
Model No.: CTK-315AC-YW
Brand: Chittak
Status: New
Machinable Material: Alloy, Aluminum, Carbon Steel, Aluminium Alloy, Stainless Steel, Brass / Copper
Video Factory Inspection: Not Available
Mechanical Test Report: Not Available
Marketing Type: New Product 2020
Core Component Warranty Period: Not Available
Core Components: Motor, Gear
Degree Of Automation: Semi-Automatic
Place Of Origin: China
Core Selling Point: Easy To Operate
Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Restaurant, Garment Shops, Home Use, Other, Advertising Company, Building Material Shops, Retail, Food Shop, Machinery Repair Shops, Printing Shops, Manufacturing Plant, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining
Warranty Period: 1 Year
Out-of-warranty Service: Field Maintenance And Repair Service, Online Support, Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
| Selling Units | : | Set/Sets |
| Package Type | : | Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.) |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

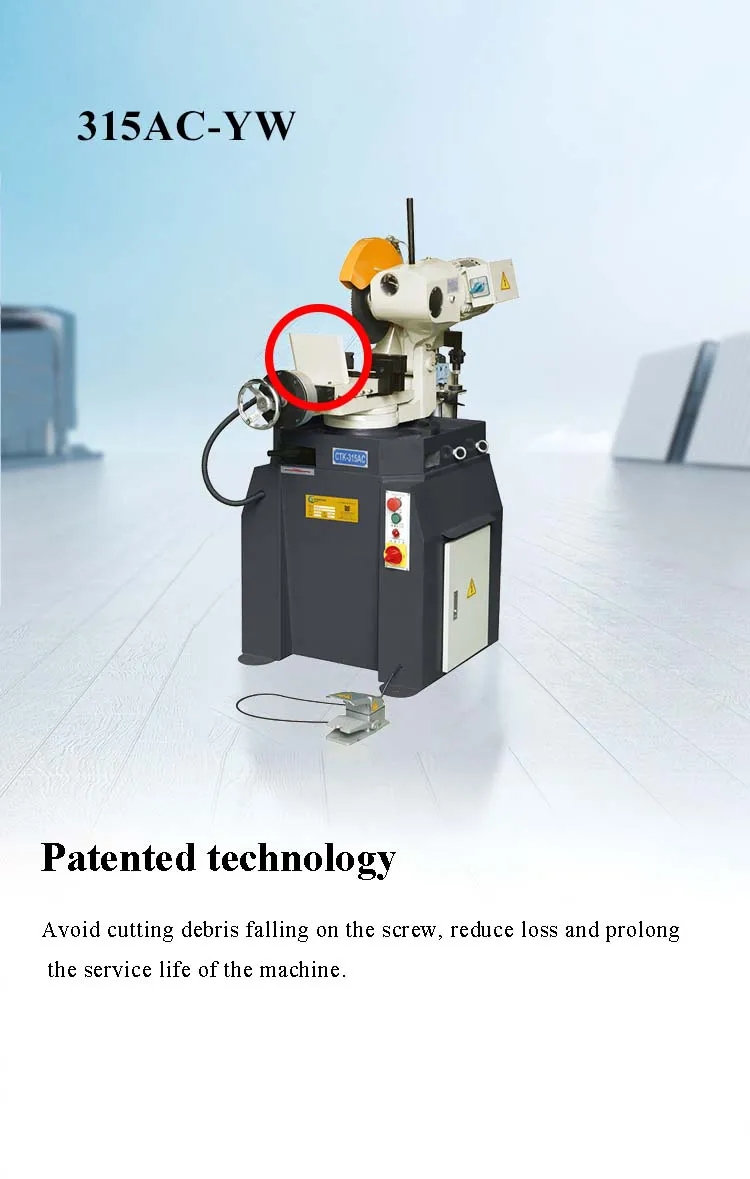

CTK-315AC-YW
1. The core component gear uses advanced grinding and vacuum heat treatment technology, with high precision and long service life. In the use process, the noise of the machine head is small, the transmission efficiency is ensured, and the service life is long.
2. A self-lubricating bearing: It is added at the movable joint between the head and the connecting seat, which can lubricate the connecting shaft in order to prevent the direct friction causing abrasion, so it helps to improve the working life, and accuracy that reduce the vibration of Saw Blade.
3. Regulating valve: the control valve imported from Taiwan is adopted, with high machining accuracy, stable flow control and even cutting speed. Fast return speed, improve work efficiency.
Model： CTK-315AC-YW Semi-automatic circular Saw Blade Pipe Cutting Machine
Cutting capacity(single mild steel pipe):
Head swivel: 90º
○Round tube(mm) Max: Φ76
□Square tube (mm) Max: 63*63
Rectangular steel (mm) Max: 75*45
Motor(KW) : Spindle drive motor YD100L-4/2 380V 2.4/3.0Kw 50Hz
Spindle speed(rpm): 50/100
Air pressure (kg/cm2): 5-8
Saw blade size Diameter (mm): HSSφ250-Φ325
Pin holes (mm): 2×φ11×PCD63
Net weight(KG): 280
Dimension(LxWxH)(mm): 680*1000*1400
Our company is mainly engaged in traditional pipe cutting machines, forming machines, Pipe Chamfering Machine and intelligent laser pipe cutting machines. High quality at an affordable price. Chittak is willing to serve you.
