Model No.: CTK-3015F
Brand: Chittak
Application: Laser Cutting
Applied Material: Metal
Old And New: New
Laser Type: Fiber Laser
Cutting Area: 1500mm*3000mm
Support Graphic Format: Las, Dxp, Dwg, Dst, Bmp, Dxf, Ai, Plt
Whether CNC: Yes
Cooling Method: Water Cooling
Place Of Origin: China
Certification: Iso, Ce
Industrial Laser Brand: Bwt
Servo Motor Brand: Yaskawa
Laser Machine Control System Brand: Cypcut
Core Selling Point: High-Accuracy
Warranty Period: 1 Year
Out-of-warranty Service: Online Support, Field Maintenance And Repair Service, Video Technical Support
Applicable Industry: Hotels, Garment Shops, Farms, Restaurant, Food &Amp; Beverage Shops, Other, Building Material Shops, Home Use, Advertising Company, Retail, Food Shop, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Mechanical Test Report: Not Available
Video Factory Inspection: Not Available
Marketing Type: New Product 2019
Core Component Warranty Period: 2 Years
Core Components: Motor, Gear
Origin: China

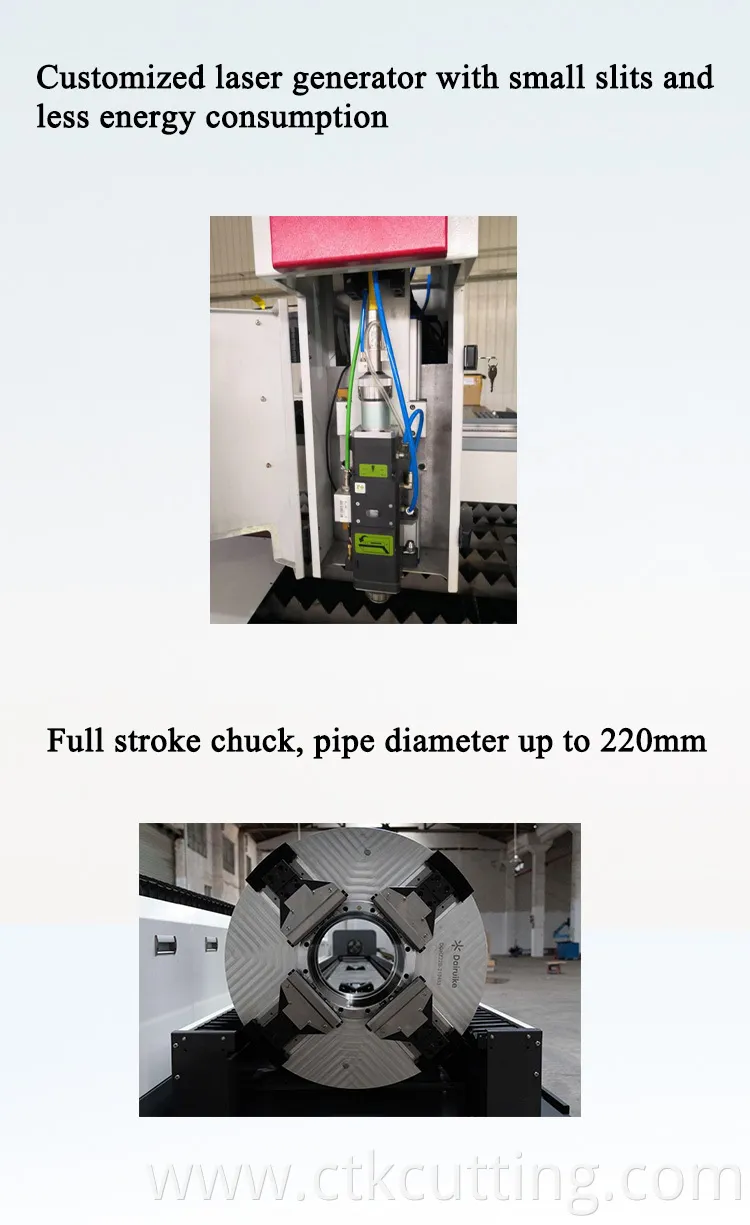

Laser Head: Osipir
Electrical Control System: Schneider
Plane Cutting Width (length X Width): 3000x1500mm
Idle Speed: 80m/min
Maximum Acceleration: 0.8G
Laser Power: 1000W / 1500W / 2000W / 3000W

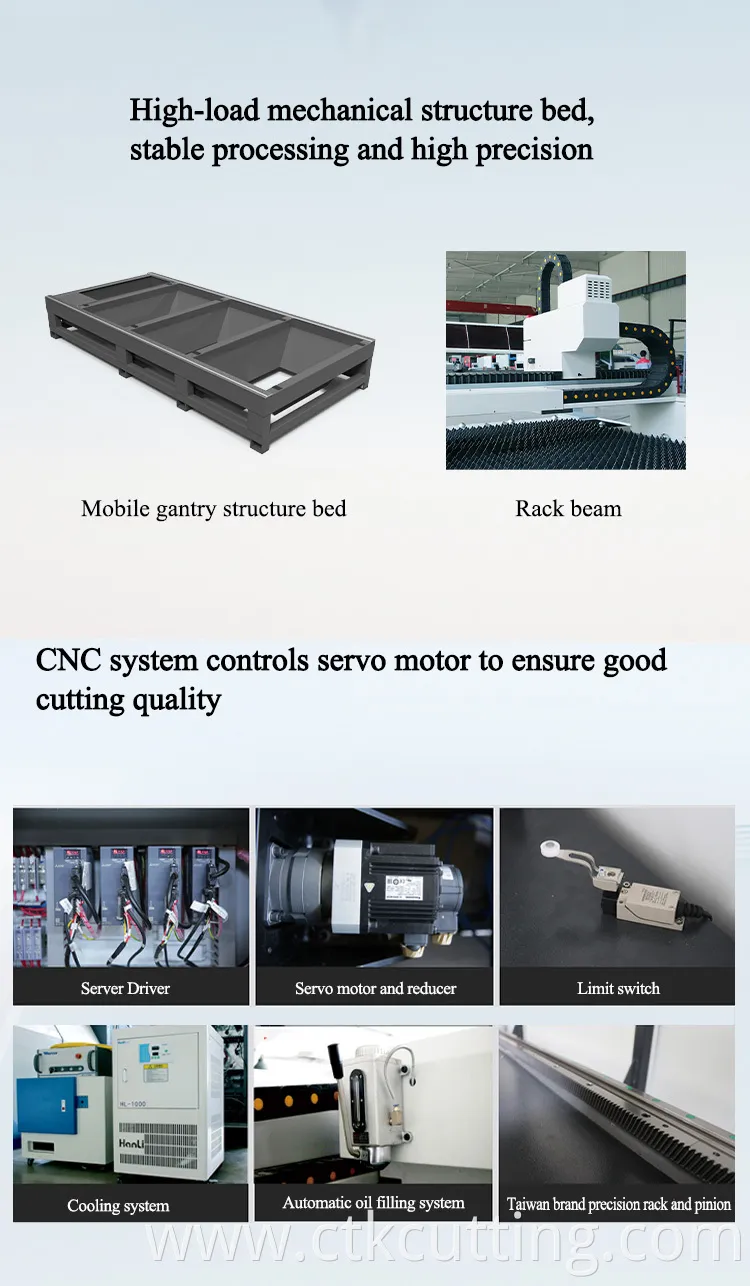

Machine Bed And Accessories: Chittak
Reducer: MOTOVARIO
Brand: Chittak
| Selling Units | : | Set/Sets |
| Package Type | : | Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.) |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

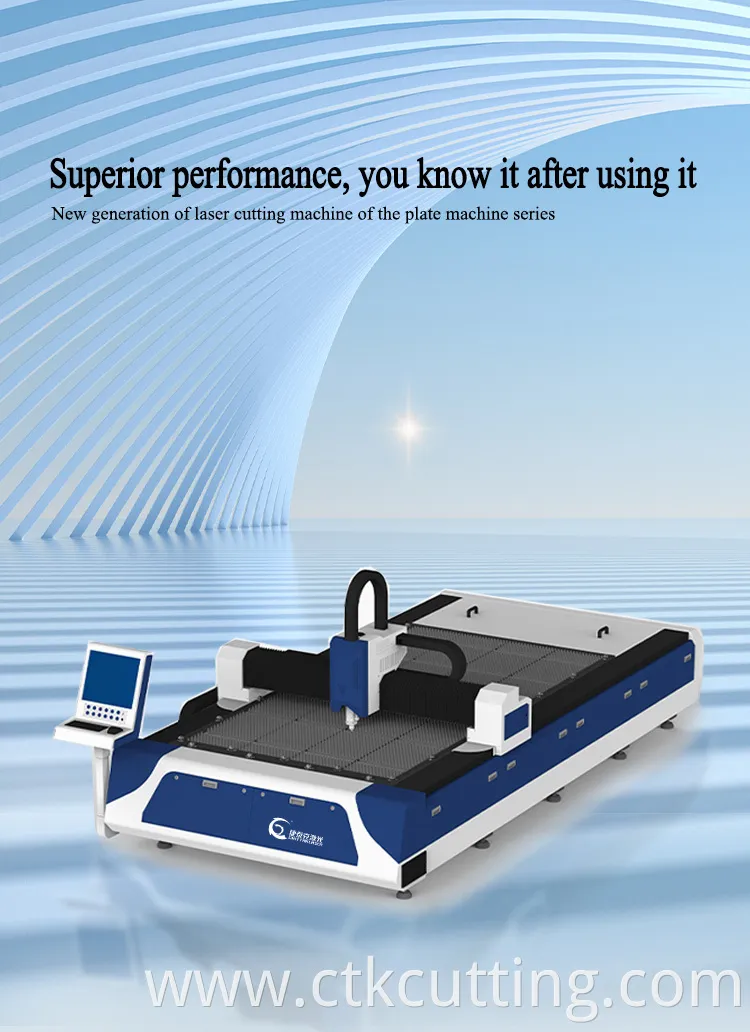

Laser cutting machine CTK-3015F
Metal Sheet Processing Machine
Model CTK-3015F Tube Cutting Specifications
Φ20mm-φ220mm，L=6000mm；(square tube and rectangular tube diagonal ≤ 220mm)
Flat cutting format (LxW) 3000x1500mm
Tube Cutting Specifications: Φ20mm-φ220mm，L=6000mm；(square tube and rectangular tube diagonal ≤ 220mm)
Flat cutting format(LxW): 3000x1500mm
Our company is mainly engaged in traditional pipe cutting machines, forming machines, Pipe Chamfering Machine and intelligent laser pipe cutting machines, Sheet Fiber Laser Cutting Machine. High quality at an affordable price. Chittak is willing to serve you.
